Trenchless Pipe Lining

Trenchless Pipe Lining

Our Trenchless pipe lining is a great alternative to traditional pipe replacement. Traditional pipe repair requires more time, more money, more mess and more damage to your yard. Lining differs in that there is much less digging so that it takes less time and manpower to complete. Lining is where a pipe is created within an existing pipe. This pipe is created out of a special epoxy and maintains the strength of a new pipe without damaging the existing structure or landscaping.

Our pipe liner creates a pipe-within-a-pipe to restore failing drains and sewer lines. This is done in a way that saves our customer time and money. By inserting our epoxy into existing pipes we are able to repair piping systems and can even traverse missing sections of a pipe. This is a long-term solution for leaks, breaks, blockages, root intrusion, calcium build-up, water damage, mold, sewer backups and flow capacity.

Sewer Problems?

If you think you may have a sewer problem, that may not be the issue! Many times a sewer or storm drain problem is only a symptom when the real problem is one of the pipelines connected to your sewer. Which means, our trenchless plumbing lining services could fix your problem with higher efficiency and a much more affordable price. If you’re having sewer related issues consider trenchless pipe lining to alleviate your problem.

Trenchless Pipe Lining Process

Trenchless Pipe Lining, Discover the Issue

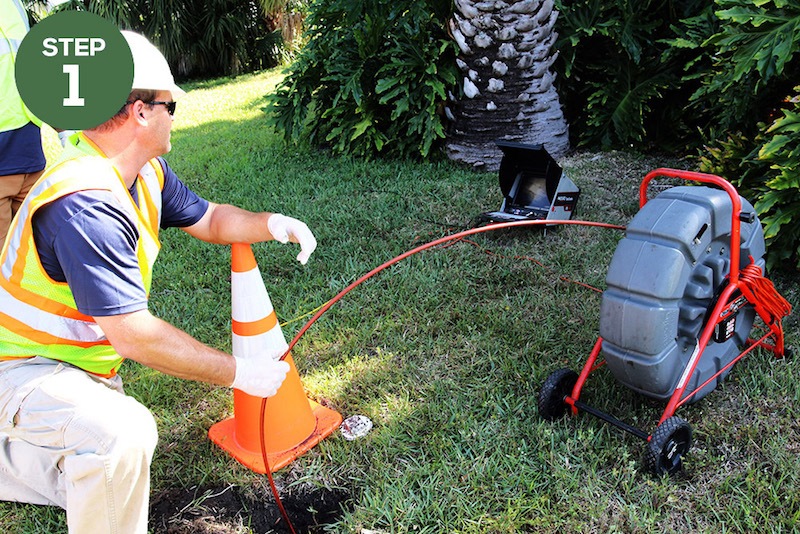

Discover the Issue

Pipeline is inspected with a camera to find the problem.

Clean the Pipeline, Trenchless Pipe Lining

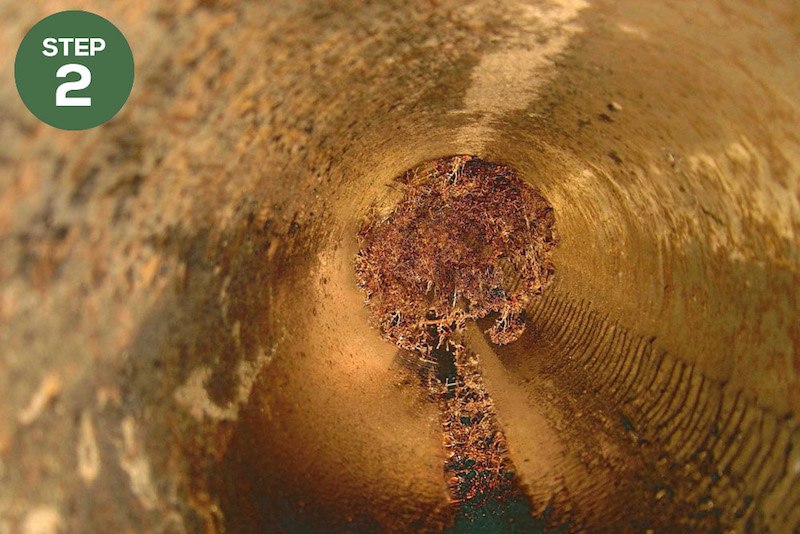

Clean the Pipeline

Pipeline must then be cleaned out to remove roots, dirt, debris and any potential objects that could disrupt the lining process.

Measurements of Pipelines, PLUMCORE

Take Measurements

Measurements of the pipelines are taken. The liner is then cut on the job site according to acquired measurements.

Taking Measurements, Trenchless Pipe Lining

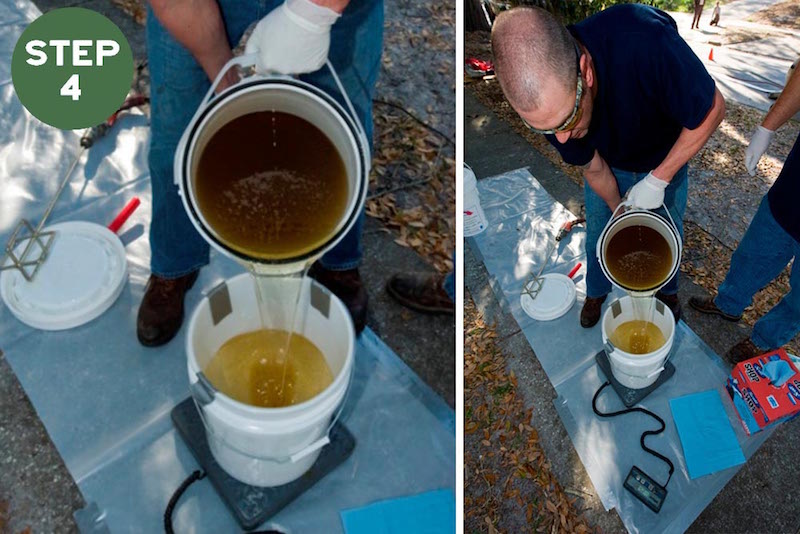

Mix & Measure Resin

Resin is also measured and mixed according to the acquired measurements

Pour into Linear, Trenchless Pipe Lining

Pour Into Liner

The resin is then poured into the liner and rolled many times to ensure complete impregnation of resin to liner.

Load into Inverter, Trenchless Pipe Lining

Load Into Inverter

Impregnated liner is then loaded into the inverter.

Insert into existing Pipeline, Trenchless Pipe Lining

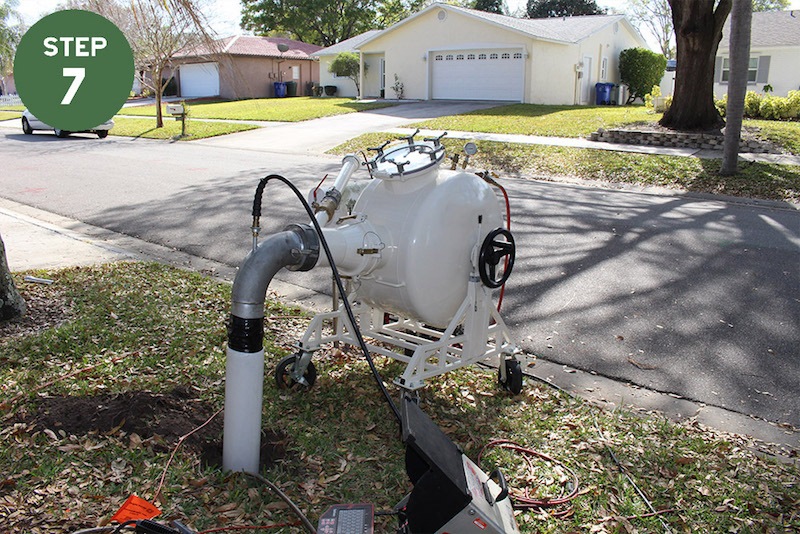

Insert Into Existing Pipeline

The liner is then inserted into the existing pipe.

Invert with air pressure, Trenchless Pipe Lining

Invert with Air Pressure

Air pressure then inverts inside out allowing resin to bond and seal with existing host pipe.

Trenchless pipeline finished product

Ready for Service

Once cured, the calibration tube is removed and the pipe is ready for service.

Advantages of Trenchless Pipe Lining

As a trenchless technology, lining does not require excavation to rehabilitate a pipeline that is either leaking or structurally unsound. The finished product is a stronger, acid resistant, faster flowing pipe that will last up to 50 years or longer. There is a peace of mind to be had in knowing that roots, separated joints, main connections, even no-pipe areas in a pipeline can be fixed without being invasive. These are just a few persistent problems that occur every year with certain aging facilities or residential homes. SO DON’T DIG; THERE IS A BETTER WAY!

Contact Us in Birmingham today and click below to find out more on our Residential and Commercial lining services.
